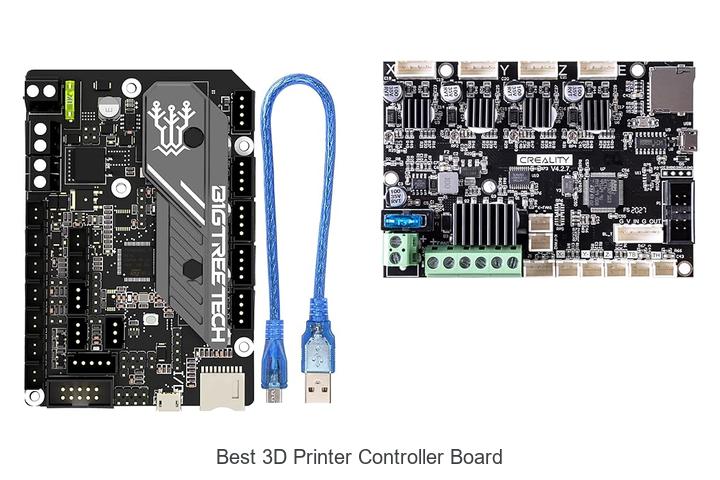

Top Picks for the Best 3D Printer Controller Board Revealed

In the realm of additive manufacturing, the precision and reliability of stepper motor drivers, firmware compatibility, and real-time processing capabilities play a pivotal role in the overall performance of 3D printers. Selecting the best 3d printer controller board requires a deep understanding of microcontroller units (MCUs), input/output pin configurations, and communication protocols such as UART, SPI, and I2C. These components dictate the efficiency of motion control, thermal management, and sensor integration, ultimately influencing print quality and speed.

As different controller boards cater to varying levels of customization and expansion, identifying the optimal balance between hardware sophistication and user-friendliness becomes crucial. Delving into the technical nuances behind these control units reveals why choosing the best 3d printer controller board can make a transformative difference in your printing projects.

Discover the Ultimate Brain Behind Your 3D Printing Masterpieces

Image	Product	Price
Our Pick 1	BIGTREETECH SKR Mini E3 V3.0 Control Board with TMC2209 UART	Check Price On Amazon
Our Pick 2	Creality Ender 3 Silent Motherboard, High Performance 32 Bit 3D	Check Price On Amazon
Our Pick 3	Official Creality 3D Printer Ender 3 Upgraded Silent Board Motherboard	Check Price On Amazon

1. BIGTREETECH SKR Mini E3 V3.0 Control Board with TMC2209 UART

Elevate your 3D printing experience with the BIGTREETECH SKR Mini E3 V3.0 Control Board, designed for users seeking precision, reliability, and quieter operation.

Equipped with the powerful STM32G0 series main control chip and high-quality TMC2209 UART stepper drivers, the SKR Mini E3 V3.0 ensures smooth, quiet motor operation.

The USB interface upgrade to Micro USB B improves connectivity, while the versatile SPI output power supply supports multiple peripherals.

Pros

• Advanced STM32G0 main chip enables fast and stable processing for complex firmware like Marlin and Klipper.
• High-performance TMC2209 drivers provide near-silent stepper motor operation, reducing print noise significantly.
• Enhanced cooling system with three CNC fans and upgraded heat sinks delivers excellent thermal management during prolonged use.

Cons

• Limited plug-and-play compatibility, primarily optimized for Creality printers; some customization required for other models.

In comparison to other 3D printer controller boards, the SKR Mini E3 V3.0 stands out due to its quiet operation and robust community support.

If you demand reliable performance with advanced features and effective cooling, this board is an excellent investment to upgrade your 3D printer’s capabilities.

2. Creality Ender 3 Silent Motherboard, High Performance 32 Bit 3D

Upgrade your Ender 3 3D printer with the Creality Ender 3 Silent Motherboard, designed to deliver ultra-quiet operation and enhanced printing precision. Equipped with advanced technology, this high-performance 32-bit controller board transforms your printing experience through smooth motion control and versatile firmware support.

This motherboard features the innovative TMC2225 stepper motor driver, reducing noise significantly while enabling seamless and accurate movements. Compatible with both Marlin and Klipper firmware, it offers flexibility for users to customize their setup easily.

Pros

• Ultra-quiet operation with the TMC2225 stepper driver for noise reduction
• Supports both Marlin and Klipper firmware for greater customization
• Plug-and-play design with pre-installed Ender-3 firmware for easy setup

Cons

• Requires careful verification of power supply polarity to ensure safety

Offering remarkable performance improvements over stock boards, the Creality Ender 3 Silent Motherboard is an excellent upgrade for enthusiasts seeking quieter operation and firmware flexibility at an affordable price point of $ Its user-friendly installation and reliable functionality make it a top contender among 3D printer controller boards.

3. Official Creality 3D Printer Ender 3 Upgraded Silent Board Motherboard

Upgrade your Creality Ender 3 series with the Official Creality 3D Printer Ender 3 Upgraded Silent Board Motherboard, designed for ultra-quiet printing and enhanced performance. This advanced control board reduces noise significantly while boosting printer responsiveness, making it an essential accessory for serious 3D printing enthusiasts seeking smoother operation and modern firmware support.

Equipped with TMC2225 silent stepper drivers and a 32-bit ARM processor, this motherboard ensures quieter stepper motor operation below 50dB and seamless compatibility across multiple Ender 3 models. It supports features like BLTouch auto bed leveling, filament runout sensors, and includes preinstalled bootloader with Marlin

1 firmware, enabling hassle-free upgrades and safer printing experiences.

Pros

• Significantly reduces printer noise with TMC2225 ultra-quiet motor drivers
• 32-bit ARM mainboard supports advanced firmware and enhanced motion control
• Compatible with multiple Creality Ender 3 models, facilitating easy plug-and-play for Ender 3

Cons

• Firmware flashing required for some models, which may pose challenges for beginners

For a price point of $39, the Official Creality V4.

While it demands some technical setup for certain printer variants, its overall performance gain and compatibility make it a top choice among 3D printer controller boards.

4. BIGTREETECH SKR Mini E3 V2.0 Control Board 32Bit Silent Motherboard

Upgrade your Ender 3 3D printer with the BIGTREETECH SKR Mini E3 V2.0 Control Board, engineered for silent and efficient performance. This 32-bit silent motherboard provides seamless compatibility and enhanced stability, making it a top choice for enthusiasts seeking precision and quieter operation.

The SKR Mini E3 V2.0 features an ARM Cortex-M3 STM32F103RCT6 72MHz CPU integrated with the TMC2209 driver for smooth and silent motion control. Improved thermal management with a WSK220N04 MOS tube and a four-layer PCB ensures durability and prevents overheating.

Improved thermal management with a WSK220N04 MOS tube and a four-layer PCB ensures durability and prevents overheating. It also supports valuable functionalities like BLTouch, filament detection, and power resume for uninterrupted printing.

Pros

• Nearly silent operation thanks to integrated TMC2209 stepper drivers
• Plug-and-play drop-in replacement for Ender 3 series printers
• Robust thermal dissipation system with low on-resistance MOS tube and four-layer PCB design
• Supports multiple extensions including BLTouch sensor and filament run-out detection
• Resumes printing after power loss, minimizing print failures

Cons

• Installation requires careful wiring and removal of hot glue from original connectors, which can be time-consuming

For Ender 3 users seeking quieter and more reliable 3D printing, the BIGTREETECH SKR Mini E3 V2.0 delivers substantial upgrades over stock boards.

Compared to similar controller boards, it stands out with its ease of installation, enhanced heat management, and extensive feature support, making it an excellent value at an affordable price point.

5. BIGTREETECH Upgrade Ender 3 Motherboard Silent Control Board SKR Mini

Upgrade your Ender 3 3D printer with the BIGTREETECH SKR Mini E3 V2.0 motherboard, designed to enhance printing precision while maintaining ultra-quiet operation.

Built around the powerful STM32F103RCT6 main control chip with 256KB flash memory, the SKR Mini E3 V2.0 features a CNC fan requiring speed settings for optimal cooling. It supports essential upgrades such as BLTouch auto bed leveling, filament detection, power-off resume, and automatic shutdown, while improved heat dissipation and component spacing ensure longevity and stability.

It supports essential upgrades such as BLTouch auto bed leveling, filament detection, power-off resume, and automatic shutdown, while improved heat dissipation and component spacing ensure longevity and stability.

Pros

• Quiet and smooth operation with a silent CNC fan and quality stepper drivers
• Supports advanced features like BLTouch sensor, filament runout detection, and power failure recovery
• Enhanced thermal management with low-resistance MOSFET and optimized component spacing

Cons

• Firmware configuration required to adjust CNC fan speed before use

For those seeking a reliable and feature-rich upgrade to the Ender 3 motherboard, the BIGTREETECH SKR Mini E3 V2.0 offers exceptional value with quiet performance and versatile enhancements. Compared to standard boards, it provides better heat management and support for popular accessories, making it a top choice in 3D printer controllers.

Compared to standard boards, it provides better heat management and support for popular accessories, making it a top choice in 3D printer controllers.

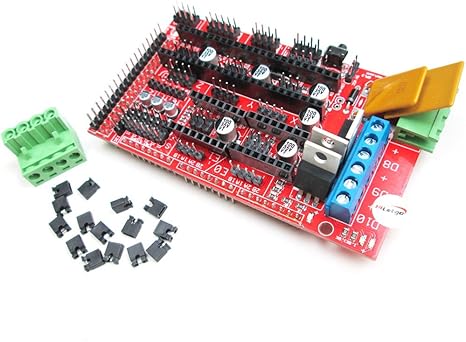

6. HiLetgo RAMPS 1.4 Control Panel 3D Printer Control Board Reprap

Upgrade your 3D printing setup with the HiLetgo RAMPS 4 Control Panel, a versatile and reliable control board designed to manage multiple stepper motors and accessories. Perfect for RepRap enthusiasts and makers seeking precision and expandability, this board provides a solid foundation for high-quality prints and customization.

Perfect for RepRap enthusiasts and makers seeking precision and expandability, this board provides a solid foundation for high-quality prints and customization.

Featuring a customizable fifth stepper motor output for either a second Z-axis or extruder, the control board supports three heaters, fans, and thermistors simultaneously. Its heated bed control includes an extra 11A fuse for safety, and Pololu stepper drivers can be easily replaced via the dedicated socket arrangement.

Pros

• Customizable fifth stepper motor port for enhanced flexibility
• Supports multiple heaters, fans, and thermistors for advanced temperature control
• Convenient Pololu driver socket allows effortless maintenance and upgrades

Cons

• 5V regulator issues reported, which may require repair or caution during use

Overall, the HiLetgo RAMPS 4 Control Panel offers excellent value for DIY 3D printer builders, combining adaptability with robust functionality. Its performance rivals other boards in the same category, making it a dependable choice for hobbyists seeking a feature-rich control solution.

Its performance rivals other boards in the same category, making it a dependable choice for hobbyists seeking a feature-rich control solution.

7. BIGTREETECH SKR Mini E3 V3.0 32 Bit Control Board Integrated

Discover the BIGTREETECH SKR Mini E3 V3.0, a powerful 32-bit control board designed for ultra-smooth, silent 3D printing.

Featuring an ARM Cortex-based STM32G0 series MCU and integrated TMC2209 silent stepper drivers, this board supports Klipper and Marlin firmware, providing flexible customization. Its enhanced aluminum heat sink improves thermal management, while compatibility with multiple touchscreen displays and sensors ensures versatile functionality across various setups.

Pros

• Integrated TMC2209 drivers enabling ultra-quiet motor operation and precise control.
• Wide compatibility with Ender 3, Ender 5, Ender 5 Pro, and Ender 3 V2 printers for seamless upgrades.
• Supports a variety of additional features such as BLTouch auto bed leveling, filament detection, RGB lighting, and multiple touchscreen interfaces.

Cons

• Requires familiarity with firmware configuration for optimal setup, which might pose a challenge for beginners.

Overall, the BIGTREETECH SKR Mini E3 V3.0 stands out as a cost-effective and versatile controller board that breathes new life into aging 3D printers, especially for users looking to implement Klipper firmware.

8. 3D Printer CNC Controller Ardiuno CNC kit with for ArduinoIDE,Longruner

Experience precision and versatility in your 3D printing and CNC projects with the Longruner 3D Printer CNC Controller Arduino Kit. Designed for both beginners and professionals, this kit seamlessly integrates with ArduinoIDE, offering reliable performance and comprehensive control for your mechanical builds.

Equipped with the latest CNC Shield Expansion Board V3.0 and DRV8825 stepper motor drivers featuring aluminum heat sinks, the kit ensures efficient operation and heat management.

Pros

• Updated CNC Shield V3.0 compatible with GRBL 0.9 and ArduinoIDE for enhanced functionality.
• Includes high-quality DRV8825 stepper motor drivers with heat sinks for stable and efficient performance.
• Complete DIY kit containing all necessary modules and components suitable for starters and experienced users alike.

Cons

• Requires careful assembly and setup; power supply nuances may cause initial troubleshooting.

Combining premium materials and thoughtful design, this Longruner kit represents a reliable and cost-effective choice among the best 3D printer controller boards. It offers excellent compatibility with Arduino platforms and promises efficient performance, making it an invaluable tool for your CNC and 3D printing needs.

9. BIGTREETECH Octopus V1.1 Control Board 32Bit Silent Motherboard Support 8

Experience cutting-edge 3D printing control with the BIGTREETECH Octopus V1.1 Control Board.

Powered by an ARM Cortex-M4 STM32F446ZET6 microcontroller running at 180MHz, the board supports up to eight stepper drivers and six PWM fans, enabling superior cooling management. Its CAN Bus connectivity simplifies expansion, while compatibility with Klipper and Marlin firmware ensures broad customization.

The Type C port adds convenient programming and power options.

Pros

• Robust 32-bit processing with 180MHz ARM Cortex-M4 chip for fast, stable operation
• Support for up to 8 stepper drivers and multiple PWM fans to optimize machine performance
• Versatile firmware compatibility (Klipper and Marlin) with easy USB firmware updates

Cons

• Limited to 24V input voltage; 12V operation is unsupported, which may affect some setups

The BIGTREETECH Octopus V1.1 excels as a powerful and expandable 3D printer control board, ideal for users demanding advanced features and silent operation. Its rich functionality and compatibility make it stand out among competitors, offering excellent value at a competitive price point.

10. BIGTREETECH SKR PICO V1.0 Control Board Integrated 4 Axis TMC2209

Experience superior 3D printing control with the BIGTREETECH SKR PICO V1.0 Control Board, engineered for precision and efficiency. Featuring integrated 4-axis TMC2209 drivers and a compact Raspberry Pi ARM Cortex-M0+ MCU PR2040, this board stands out as a powerful solution tailored for Voron users and beyond.

Designed with a sleek, space-saving layout and a Type-C interface for seamless communication, the SKR PICO V1.0 supports Klipper firmware and quiet printing through its TMC2209 mute drivers.

Enhanced heat dissipation via upgraded heat sinks and controllable fans ensures stable performance during intense printing tasks.

Pros

• Compact and stylish design perfectly fits Voron V0 and V0.1 machines, optimizing internal space.
• Equipped with high-quality Murata MLCC capacitors for improved reliability and durability.
• Supports silent 3D printing with integrated TMC2209 drivers running in UART mode for noise reduction.

Cons

• Firmware customization can be complex for users unfamiliar with reallocating Trinamic driver assignments.

Offering excellent build quality, quiet operation, and efficient heat management, the BIGTREETECH SKR PICO V1.0 represents a top-tier choice among 3D printer controller boards.

Its integration with Raspberry Pi and Klipper compatibility further enhances versatility compared to other controller boards in its price range.

Top Tips to Choose the Best 3D Printer Controller Board

Processor and performance

When considering the processor and performance for a 3D printer controller board, it’s important to evaluate the CPU type and speed to ensure smooth and efficient operation. Controllers equipped with faster CPUs can handle complex printing tasks and support high-resolution models without lag.

Additionally, memory capacity plays a critical role in managing the printer’s functions; sufficient RAM helps in quick data processing, while adequate storage allows for holding multiple firmware versions or print jobs. Another essential aspect is the board’s realtime processing capabilities, which enable it to respond swiftly to sensor inputs and motor controls, crucial for maintaining print accuracy and quality. Choosing a controller with a balanced combination of these features ensures reliable performance suitable for both beginners and more advanced 3D printing projects.

Connectivity and interface options

When selecting the best 3d printer controller board, it is important to consider how the board connects and communicates with your devices to ensure smooth printing operations. Many boards offer support for USB and SD cards, making it easy to transfer print files directly or operate without a connected computer. For those seeking wireless convenience, WiFi support is also available on some models, allowing for remote monitoring and control.

For those seeking wireless convenience, WiFi support is also available on some models, allowing for remote monitoring and control. Compatibility with LCD screens and touch interfaces enhances user experience by providing easy access to settings and real-time information right on the device. Additionally, understanding communication protocols such as SPI, UART, and I2C is essential since these enable the controller board to interact effectively with motors, sensors, and other peripherals.

Choosing a board with versatile connectivity options that match your printing setup will help optimize performance and make the printing process more intuitive and efficient.

Number and type of motor and sensor ports

When selecting the best 3d printer controller board, it is important to consider the number and type of motor and sensor ports it offers to ensure compatibility with your printer’s components. A good controller board will support various stepper motor drivers, allowing you to choose the most suitable ones for your printing needs and potentially upgrade them later. The number of available motor outputs determines how many stepper motors can be connected simultaneously, which is essential if your printer uses multiple axes or has features like dual extruders.

Additionally, look for flexible endstop and sensor input options, as these inputs are crucial for detecting the position of moving parts and ensuring precise printing. Having multiple and versatile ports means you can connect different types of endstops or sensors such as mechanical, optical, or inductive switches, enhancing the printer’s functionality and reliability.

Keeping these factors in mind will help you find a controller board that meets your printer’s technical requirements while allowing room for future upgrades and customization.

Compatibility with 3d printer models

When exploring options for your 3d printer controller board, it’s essential to consider the supported printer types and brands to ensure smooth integration with your specific machine. Different controller boards cater to a variety of printer architectures, from Cartesian and Delta to CoreXY designs, and some are optimized for popular brands or custom builds. Equally important is firmware compatibility, as a flexible board that supports widely-used firmware like Marlin, Klipper, or Repetier offers greater customization and easier updates.

Equally important is firmware compatibility, as a flexible board that supports widely-used firmware like Marlin, Klipper, or Repetier offers greater customization and easier updates. This flexibility allows enthusiasts and beginners alike to tweak settings for better print quality and performance. Additionally, paying attention to expansion and upgrade options can significantly extend your printer’s capabilities over time.

Boards that feature multiple input/output ports or support for additional modules such as touchscreen displays, filament sensors, or dual extruders provide room for growth without requiring a complete system overhaul. With these factors in mind, selecting a controller board that aligns well with your printer type, firmware preferences, and future upgrade plans will help maximize your 3d printing experience while keeping the setup process straightforward and adaptable.

Ease of installation and firmware support

When choosing the best 3d printer controller board, considering ease of installation and firmware support is essential for a smooth setup and reliable performance. Some boards come with preinstalled firmware, allowing you to start printing quickly without the need for complex configurations, which is ideal for beginners who want to avoid technical hurdles.

Checking the level of community and manufacturer support is equally important since an active user base and responsive developers can provide valuable troubleshooting assistance and firmware updates over time. Additionally, well-written documentation and user guides can make a significant difference in understanding setup procedures, wiring diagrams, and firmware adjustments, reducing the learning curve and enhancing user confidence throughout the process.

Balancing these factors will help you select a controller board that matches both your technical comfort level and your project’s requirements.

Price and value for money

When considering the best 3d printer controller board, it is important to evaluate the cost in relation to the features provided. A higher price often corresponds with advanced capabilities such as better processing power, compatibility with various firmware, and support for multiple stepper drivers, which can greatly enhance your printing experience.

Additionally, opting for a controller board from a manufacturer that offers solid warranty terms and responsive customer service can provide peace of mind, as any issues or defects can be addressed efficiently. Balancing these aspects will help you make an informed decision that maximizes value for your investment, ensuring you get a durable and feature-rich controller board suited to your 3d printing needs.

FAQ’s

Can Upgrading To A Better Printer Controller Board Improve Print Quality And Reliability?

Yes, upgrading to a better printer controller board can improve print quality and reliability by providing more precise control over printing processes and enhanced compatibility with advanced features. It can also offer faster processing speeds and better error handling, leading to more consistent and higher-quality prints.

What Are The Top Features To Look For In The Best Printer Controller Board?

The best printer controller board should feature compatibility with a wide range of 3D printers, support for multiple stepper drivers, and easy firmware customization. Additionally, it should offer reliable connectivity options like USB or SD card support and robust thermal management for stable performance.

What Are The Pros And Cons Of Open-Source Versus Proprietary Printer Controller Boards?

Open-source printer controller boards offer flexibility, customization, and community support, but may require more technical knowledge and lack official warranties. Proprietary boards provide reliable performance, dedicated support, and easier setup, but they limit customization and can be more expensive.

How Does The Processor Speed And Connectivity Options Impact The Performance Of A Printer Controller Board?

Processor speed directly affects a printer controller board’s ability to quickly process print jobs and manage data, resulting in faster and smoother printing. Connectivity options determine how efficiently the board communicates with devices, impacting data transfer speed and overall responsiveness.

Which Printer Controller Boards Are Most Compatible With Popular Printers Like Creality And Prusa?

The most compatible printer controller boards for popular printers like Creality and Prusa are the Creality 4.2.7 and Duet 3 boards, as they support a wide range of features and firmware. Additionally, boards based on the STM32 or Atmel chips, such as SKR V1.4 or the Prusa Mini+ board, offer excellent compatibility and community support.

Conclusion

In summary, choosing the best 3D printer controller board depends on your specific needs, including compatibility, ease of use, and features like connectivity and expandability. Popular options such as the Duet 3, SKR series, and MKS boards offer reliable performance for both beginners and advanced users. Selecting the right controller board ensures smoother printing and enhances your 3D printing experience.

Selecting the right controller board ensures smoother printing and enhances your 3D printing experience.
